Residential MVHR Units

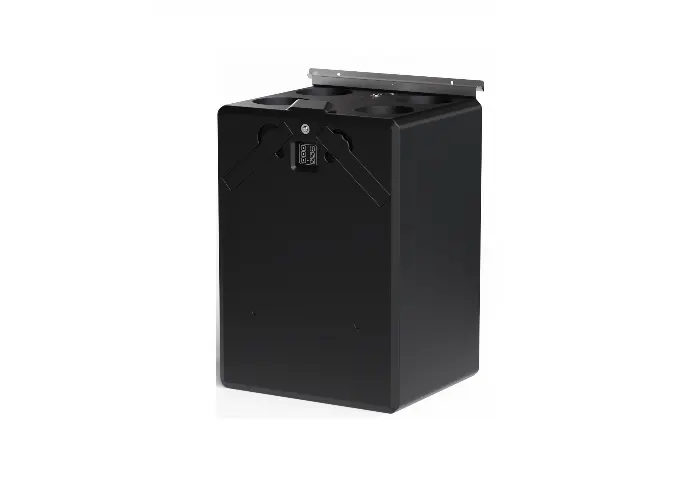

Quark
QUARK 025/035 SSC are high-efficiency heat recovery units and represent the ideal solution to control air quality by saving energy with an efficiency that exceeds 90%. Ideal for all needs in any qualified installation: apartments, small offices, meeting rooms..
The unit is part of a range of flexible competitive and compact vs the airflow units. Its dimensions
are suitable for modular kitchen cabinets. The airflow configuration is based on 3 possible layouts.
Once the airflow layout is specified the unit can be installed in 2 different possible positions without
problem (vertical floor standing, horizontal ceiling mounted). The range can be integrated by a wide
range of accessories on request.
XFlat
Central unit Xflat200 with heat and humidity recovery. This is very suitable device for the ventilation of apartments and family houses, with its air output of 200 m3/h (alternatively 150 m3/h). The unit can be installed both ways - under the ceiling or vertically on the wall, due to its smart design. Xflat200 can be mounted on ceilings of normal height without getting in the way, thanks to its minimum height. The biggest advantage is the universality and flexibility of the connection.
The Xflat200 recuperation unit provides maximum versatility both in selection and even during installation, when changes are often already difficult. Thanks to the MULTIFLEX system, you can choose correct air output of 150 or 200 m3/h directly on the unit. The unit can also be switched between the left and right version, which practically means that its behavior is electronically adapting the direction of the flow of outdoor and indoor air. Turning the throats 90° is another and indisputable advantage during final assembly.
COMFORT+ and COMFORT regulation allows complete setting of the recuperation unit. The controller connects to the unit using a cable with RJ45 connectors (10 m in the package) - this guarantees a simple and secure connection. The control can be extended with a WIFI module and everything can be controlled conveniently using the web application. You can also connect the unit to a BMS.
The ESSENTIAL regulation is a simplified version control of the recovery unit. Still, it provides the basic and fully sufficient functions. Two potentiometers allow set the desired flow rate and time period of the night cooling (bypass). The controller is connected to the unit by 10m by cable.

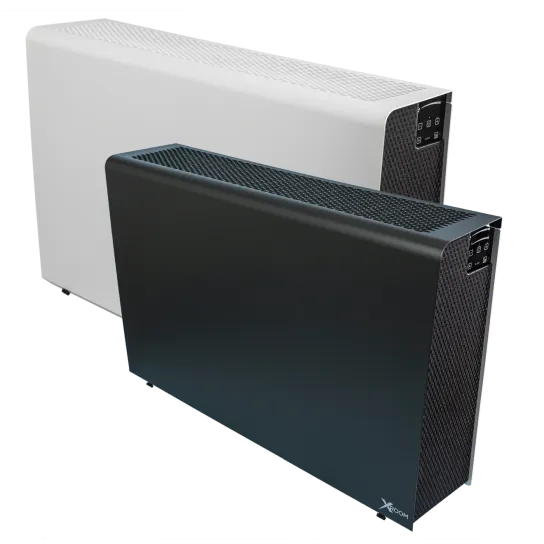

XRoom
...is unique decentralised product containing ventilation unit and heating, cooling unit in one . Systems work independently.
Xroom is manufactured in two sizes Xroom 100 and Xroom 250.
These units have wide range of usage in commercial and residential sector f.a. : in hotels, offices, schools, hospitals, apartments, family houses, …
It is currently the quietest device on the market in its category with significantly lower power consumption.
The unit matches Energy class A+
The unit comes with CO2 sensor as standard and optionally also RH and Radon sensors.
