Chilled Beams
Chilled beams are designed to simultaneously ventilate, cool, and/or heat indoor spaces. The main advantages of chilled beam systems are the great thermal comfort level, silent operation, low operating cost, resulting in an efficient, optimal indoor climate. Airvent offers a wide range of waterborne solutions suitable for false ceilings, exposed or perimeter wall installation, with complete control options to best meet unique requirements.

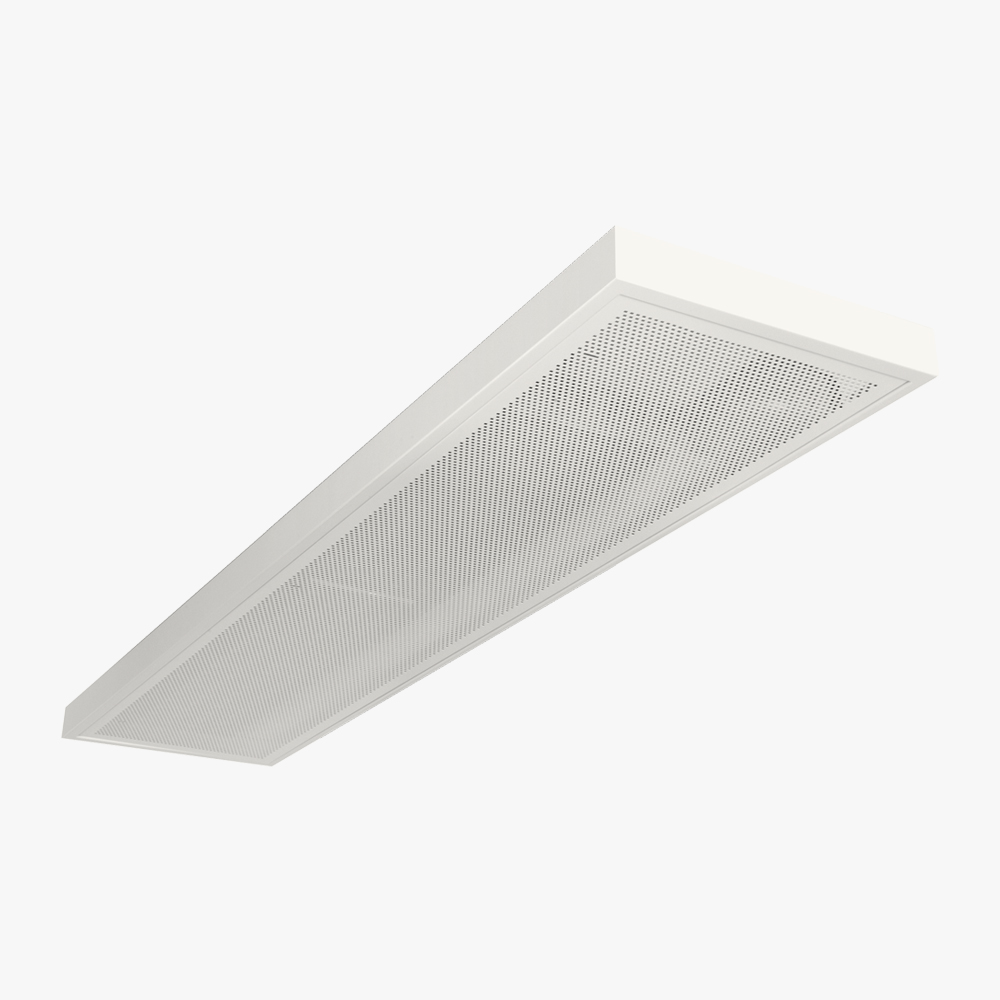

CornerAir
One-way active chilled beam for exposed installation
Description
CornerAir is a waterborne induction unit with unidirectional air diffusion, recommended for commercial spaces, such as office buildings or hotels, where a combination of ventilation, cooling, and/or heating is required, ensuring optimal air quality, thermal and acoustic comfort. CornerAir features a slim design, specifically developed for exposed installations, mounted directly under the ceiling against a corner of the space. For further energy savings, CornerAir can be equipped with our latest generation CA-CB on-board controller, developed for DCV (Demand-Controlled Ventilation) applications.
For an overview of waterborne products from Airvent, including their benefits and applications, read more here.
Materials
The plenum box and the visible, fold-down front panel design are made of galvanized steel. The front panel is powder coated in standard white RAL 9003 colour (or in any other RAL colour requested by the customer). The heat exchanger fins are made of aluminium, the piping is made of copper. The AirFlex air deflectors are made of polyamid (PA) plastic. The front panels are produced with square perforation as standard.
Highlights
- Elegant and slim exterior design
- Silent, draft-free operation
- Optimal thermal comfort
- Exceptionally low height of only 120 mm
- High flexibility with AirFlex air deflectors
- Optional CA-CB automatic control solution
Standard sizes
1500, 1800, 2100, 2400, 2700 and 3000 mm

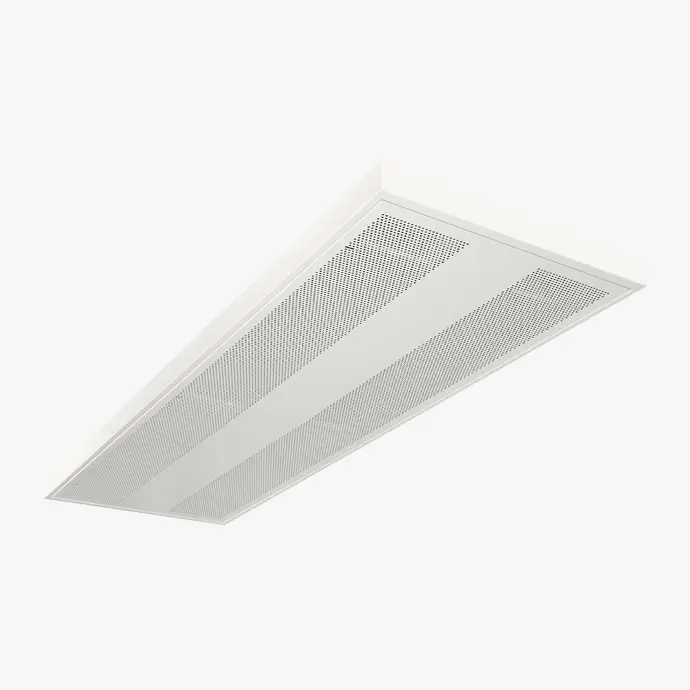

FreeAir
Two-way active chilled beam for exposed installation
Description
FreeAir is a waterborne induction unit with bidirectional air diffusion, featuring an exceptionally slim design, specifically designed for exposed installations, mounted directly under the ceiling against a corner of the space. FreeAir is recommended for commercial spaces, such as office buildings, restaurants, retail stores, museums or hotels, where a combination of ventilation, cooling, and/or heating is required, ensuring optimal air quality, thermal and acoustic comfort, and an outstanding energy efficiency level, especially if equipped with our latest generation CA-CB on-board digital controller developed for DCV (Demand-Controlled Ventilation) applications.
For a comprehensive overview of waterborne products from Airvent, including their benefits and applications, read more here.
Material & finish
The plenum box and the visible, fold-down front panel design are made of galvanized steel. The front panel is powder coated in standard white RAL 9003 color (or in any other RAL color requested by the customer). The heat exchanger fins are made of aluminium, the piping is made of copper. The AirFlex air deflectors are made of polyamid (PA) plastic. The front panels are produced with square perforation as standard.
Highlights
- Elegant and slim exterior design
- Silent, draft-free operation
- Optimal thermal comfort
- Exceptionally low height of only 120 mm
- High flexibility with AirFlex air deflectors
- Design allows for multiple units to be interconnected
- Optional CA-CB automatic control solution
Airflow range
10-35 l/s

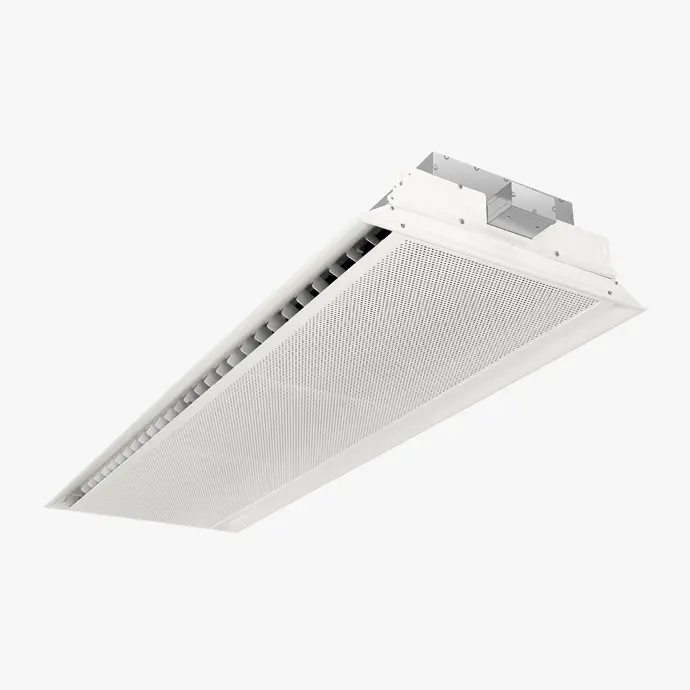

OptimAir
Two-way active chilled beam for false ceiling applications
Description and function
OptimAir is a water- and air-borne induction unit with bidirectional air diffusion, recommended for commercial applications such as office buildings, shopping malls, retail stores, restaurants, and hotels, where a combination of ventilation, cooling, and/or heating is required. OptimAir is designed primarily for false ceiling installations but can be supplied with an optional Coanda frame for visible mounting. The unit is available with two plenum alternatives for Small (S) or Large (L) airflows and a high-capacity heat exchanger option to best suit the cooling and/or heating demand of the conditioned space.
For added flexibility, OptimAir can be supplied with adjustable nozzles, enabling adjustments of the primary airflow even after installation. The nozzles are thoughtfully positioned above the heat exchanger to maximize the coil’s effect and optimally mix the primary supply air with the induced room air. This results in a well-conditioned space, providing consistent cooling across the room while focusing on the thermal and acoustic comfort of the occupants. For additional flexibility and efficiency, OptimAir can be equipped with our latest generation CA-CB on-board digital controller developed for DCV (Demand-Controlled Ventilation) requirements.
Because water is a more effective medium for heat transfer compared to air, chilled beams are an outstanding energy-efficient solution, reducing the overall energy needed for cooling, heating, and ventilation. For a comprehensive overview of chilled beams from Airvent, including their benefits and applications, read more here.
Applications
Chilled beams are a versatile ventilation solutions that provide efficient heating, cooling, and ventilation for various commercial settings. They are particularly effective in environments where maintaining high indoor air quality and energy efficiency is critical. Applications include office buildings, shopping malls, retail stores, restaurants, and hotels.
Standard sizes
600x1200
600x1500
600x1800
600x2100
600x2400
600x3000
Airflow range
47-317 m³/h (13-88 l/s)
Materials
The visible front panel and outer air deflector frame is made of galvanized sheet metal. The fold-down front panel comes with circular perforation holes, as standard. All visible parts are powder coated in standard white RAL 9003 color. The plenum box is made of galvanized sheet metal, with an EPDM rubber sealing on the air connection spigot. The heat exchanger consists of copper and aluminium. The AirFlex air deflectors are made of Polyamide (PA) plastic.

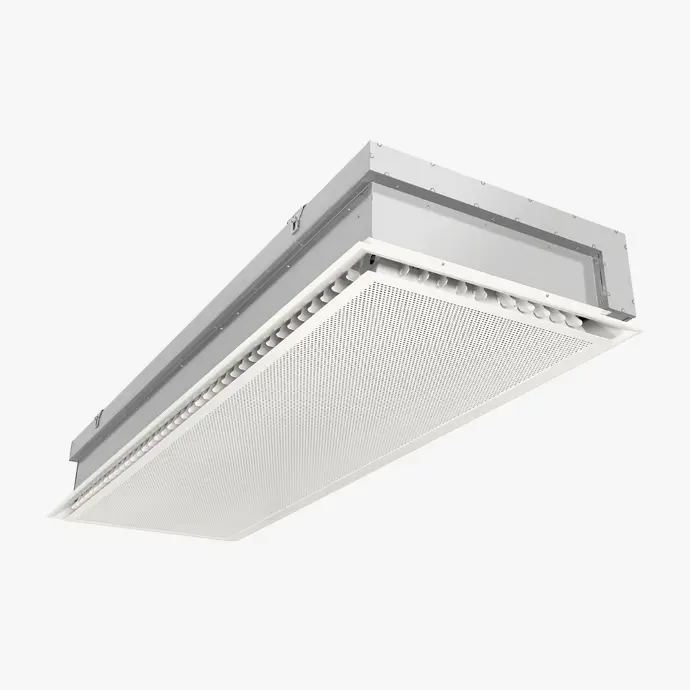

PremiAir
Four-way active chilled beam for false ceiling applications
Description and function
PremiAir is a water- and air-borne induction unit with four-way air diffusion, recommended for all types of commercial applications such as office buildings, shopping malls, retail stores, restaurants, and hotels where a combination of ventilation, cooling, and/or heating is required. PremiAir is designed primarily for false ceiling installations, but is available with an optional Coanda-frame for visible mounting.
As an option, the unit can be supplied with adjustable nozzles for high flexibility, enabling adjustments of the primary airflow even after the unit has been installed. The nozzles are positioned to optimally mix the primary supply air with the induced room air, ensuring a well-conditioned space, providing consistent cooling across the room, whilefocusing on the thermal and acoustic comfort of the occupants.
Because water is a more effective medium for heat transfer compared to air, PremiAir is an outstanding energy-efficient option, reducing the overall energy needed for cooling and ventilation rates. For additional flexibility and efficiency, PremiAir can be quipped with our latest generation CA-CB on-board digital controller developed for DCV (Demand-Controlled Ventilation) requirements.
For a comprehensive overview of waterborne products from Airvent, including their benefits and applications, read more here.
Applications
Chilled beams are a versatile ventilation solutions that provide efficient heating, cooling, and ventilation for various commercial settings. They are particularly effective in environments where maintaining high indoor air quality and energy efficiency is critical. Applications include office buildings, shopping malls, retail stores, restaurants, and hotels.
Standard sizes
600x600, 1200x600, 1800x600
Materials
The visible front panel is made of galvanized steel, with circular perforation holes as standard. The outer coanda frame is made of aluminum. All visible parts are powder coated in standard white RAL 9003 color. The plenum box is made of galvanized steel, with a rubber sealing on the air connection spigot. The heat exchanger consists of copper and aluminium. The AirFlex air deflectors are made of Polyamide (PA) plastic.
Highlights
Available in 600, 1200 and 1800 nominal sizes
Elegant, compact exterior design
Requires minimum installation space
Silent, draft-free operation
Optimal thermal comfort
High capacity heat exchangers
Individually adjustable AirFlex air deflectors, as standard
Optional adjustable nozzles for high flexibility
Optional CA-CB automatic control solution
Airflow range
43 - 306 m³/h (12-85 l/s)

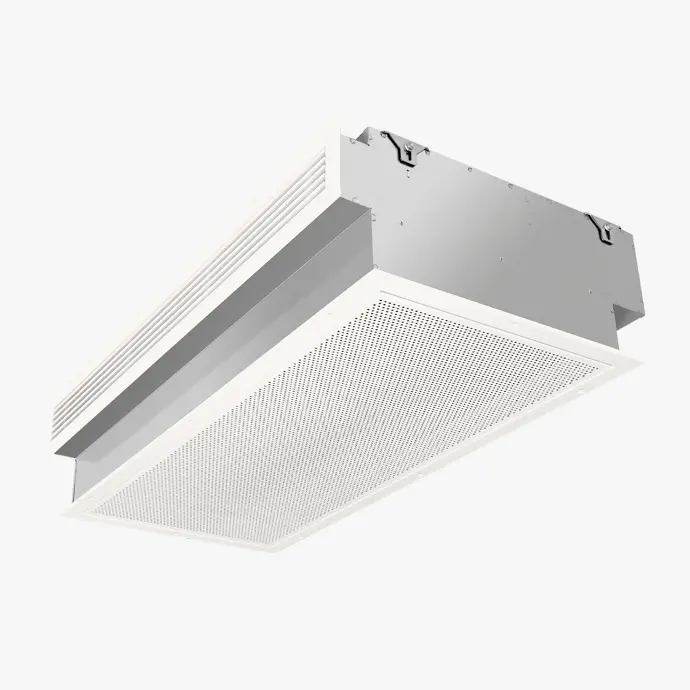

HotelAir
Active chilled beam for hotel applications
Description
HotelAir is a waterborne induction unit featuring unidirectional air diffusion, designed for seamless integration into false ceilings and walls, mounted in a corner of the room or above the entrance, commonly used in hotel rooms. HotelAir is mainly recommended for applications, where a combination of ventilation, cooling, and/or heating is required, ensuring optimal air quality, thermal and acoustic comfort, making it an ideal solution in hotel environments. Since chilled beams generally do not have any moving parts, filters, and condensation trays, they require no service or maintenance, aside from occasional light cleaning.
Material & finish
The plenum box and the visible, fold-down front panel design are made of galvanized steel. The front panel comes with circular perforation holes, ipowder coated in standard white RAL 9003 color (or in any other RAL color requested by the customer). The standard DR, or optional DH and AG grilles are made of aluminum, powder coated in RAL 9003, (or in any other RAL color requested by the customer).. The heat exchanger fins are made of aluminum, the piping is made of copper.
Highlights
- Blends well with most surroundings
- Silent operation, optimal for hotel rooms
- Optimal thermal and acoustic comfort
- Optional CA-CB automatic control solution
Airflow range
22 - 245 m³/h (6-68 l/s)

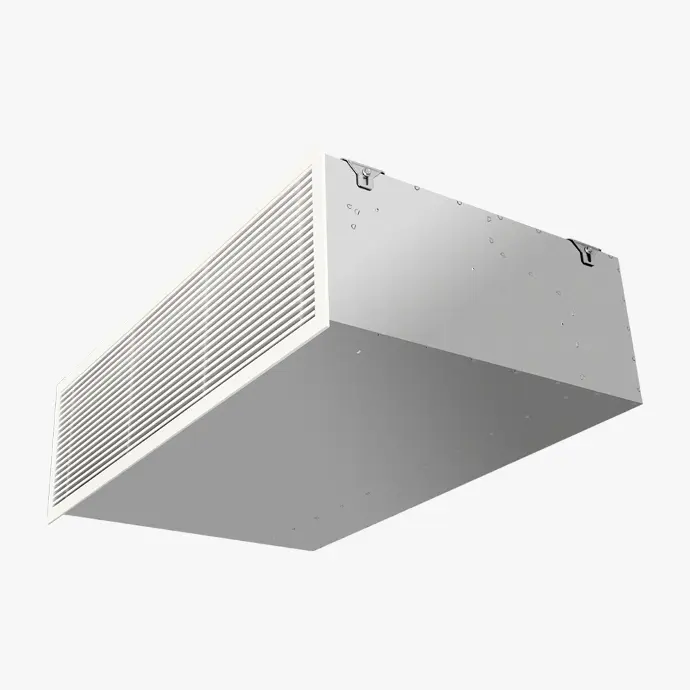

WallAir
One-way active chilled beam for wall installations
Description
The WallAir active chilled beam is a wall mounted one-way induction type air-conditioning unit, that is designed to ventilate, cool and/or heat buildings, where a comfortable climate and individual room control is needed.
Main features
Specifically developed for wall installations
Energy efficient high performance operation
Elegant, integrated exterior design
Aluminum front grille
Silent operation
Material & finish
The connection and plenum air box are made of galvanized steel. The visible front aluminum grille is powder coated in standard white RAL 9003 colour. The heat exchanger consists of copper and aluminium.
Standard sizes
600, 800, 1000 and 1200
Airflow range
10 - 35 l/s

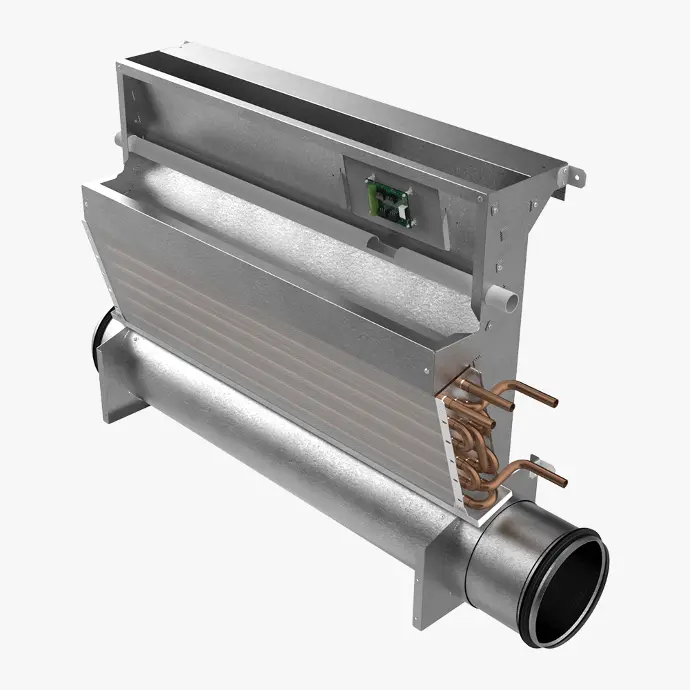

FacadeAir
Induction unit for supply air, cooling and heating
Description
FacadeAir is an induction unit for supply air, cooling and heating, intended for installation along a perimeter wall. With the primary air stream as the driving force, the room air is induced through the heat exchanger, that in consequence cools or heats the air. The primary and induced airflow is supplied to room through the window bench grille, towards the ceiling. The circular plenum box for the supply airflow is equipped with fixed nozzles and predetermined airflows. The unit can be shipped with three optional air spigot dimensions: 125, 160 or 200. FacadeAir is delivered with a wall mounted rack and a pipe console for the water pipes.
Main features
- Induction unit
- Designed for integrated facade installations
- Cooling and heating functions
- ControlAir individual local controller as an option
- Complete automation solution as an option
Materials
The connection and plenum air box are made of galvanized steel. The visible front grille is aluminium, powder coated in standard white RAL 9003 colour or nature aluminum. The heat exchanger is made of copper and aluminum. Rubber sealing on the air connection.
Standard sizes*
600-160
600-200
800-160
800-200
1000-160
1000-200
1200-160
1200-200
1500-160
1500-200
* Product length and air duct connection size
