Airvent | MultiPlex 2
The next generation of Airvent's modular air handling units
MultiPlex 2 is designed for comfort and industrial applications, offering high flexibility, reliable performance and operational efficiency, ensuring optimal indoor air quality, while aligning with the latest industry standards and technological advancements.
The longevity of MultiPlex 2 air handling units is ensured by the quality of materials, the robust framework foundation and the applied technical solutions.
As a result of the new framework, MultiPlex 2 units comply with the above classifications according to the EN 1886 standard, T thermal transmittance of the casing; TB thermal bridging factor; L casing air leakage; D mechanical strength and F filter fixation leakage.
MultiPlex 2 | Highlights
Flexible configurations MultiPlex 2 is available in 20 standard sizes, capable of handling airflows from 0,8 up to 10,5 m³/s (2800-37,500 m³/h), with multiple options for connection variability and section arrangements. The proper dimension and functionality of the unit can be selected, using our selection software.

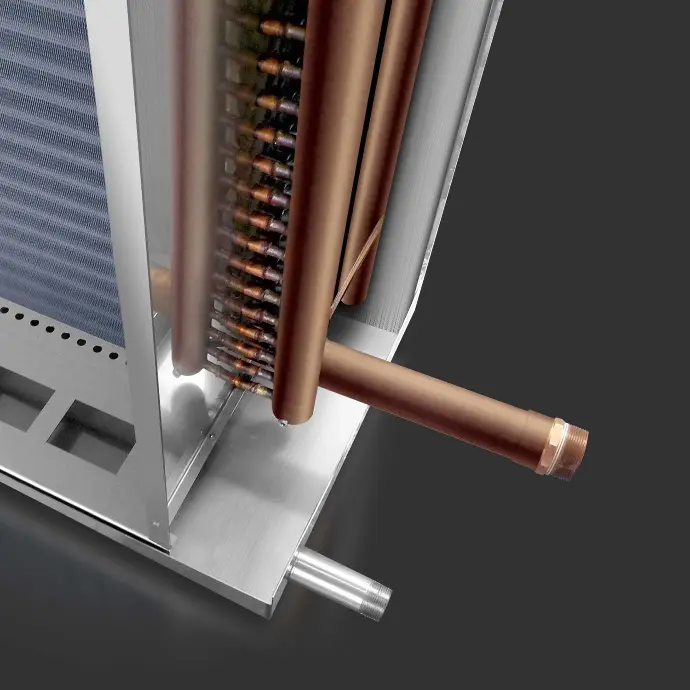

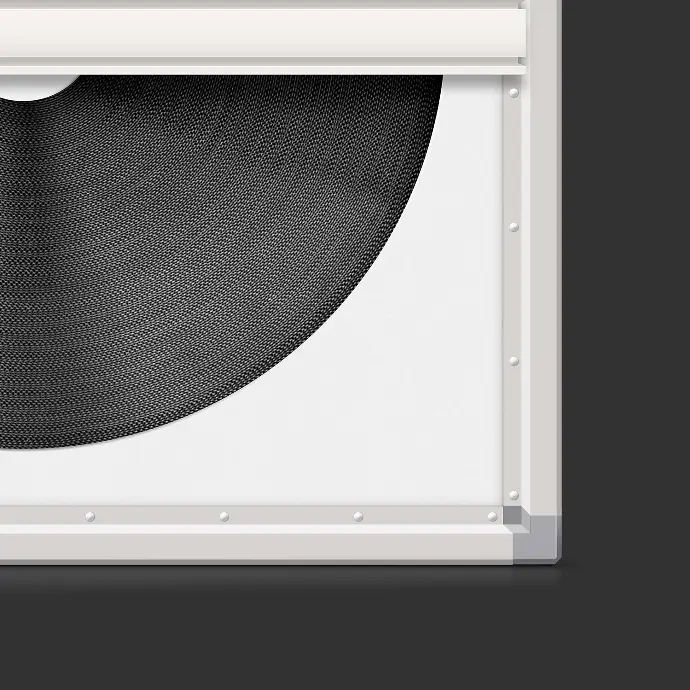

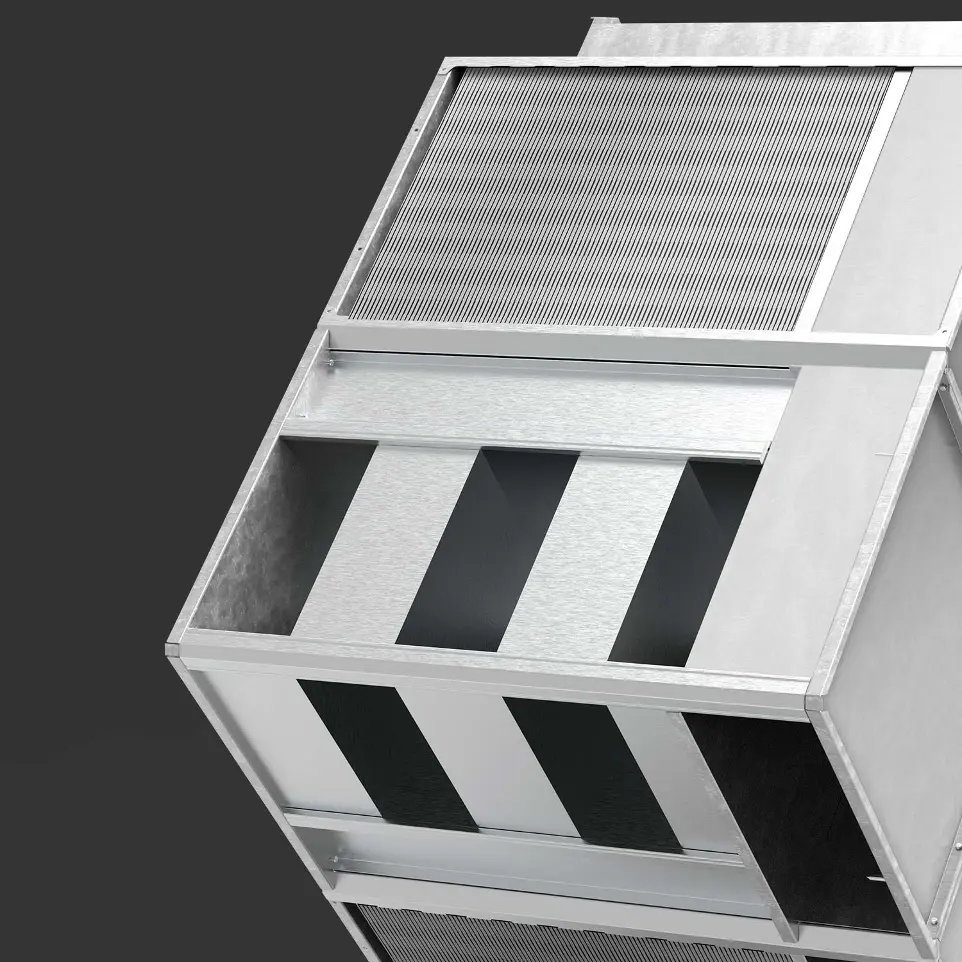

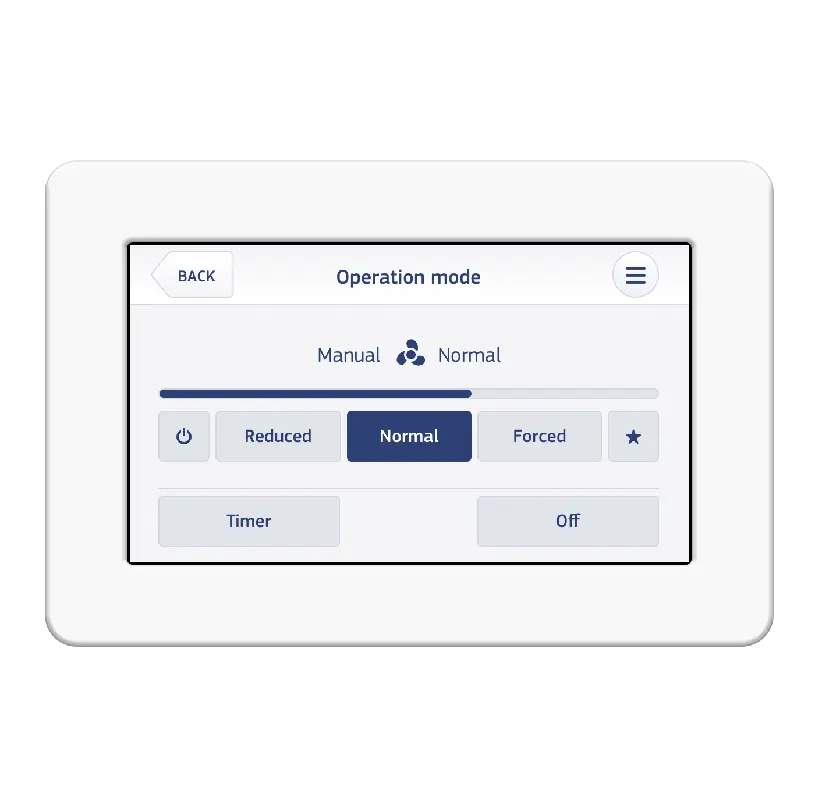

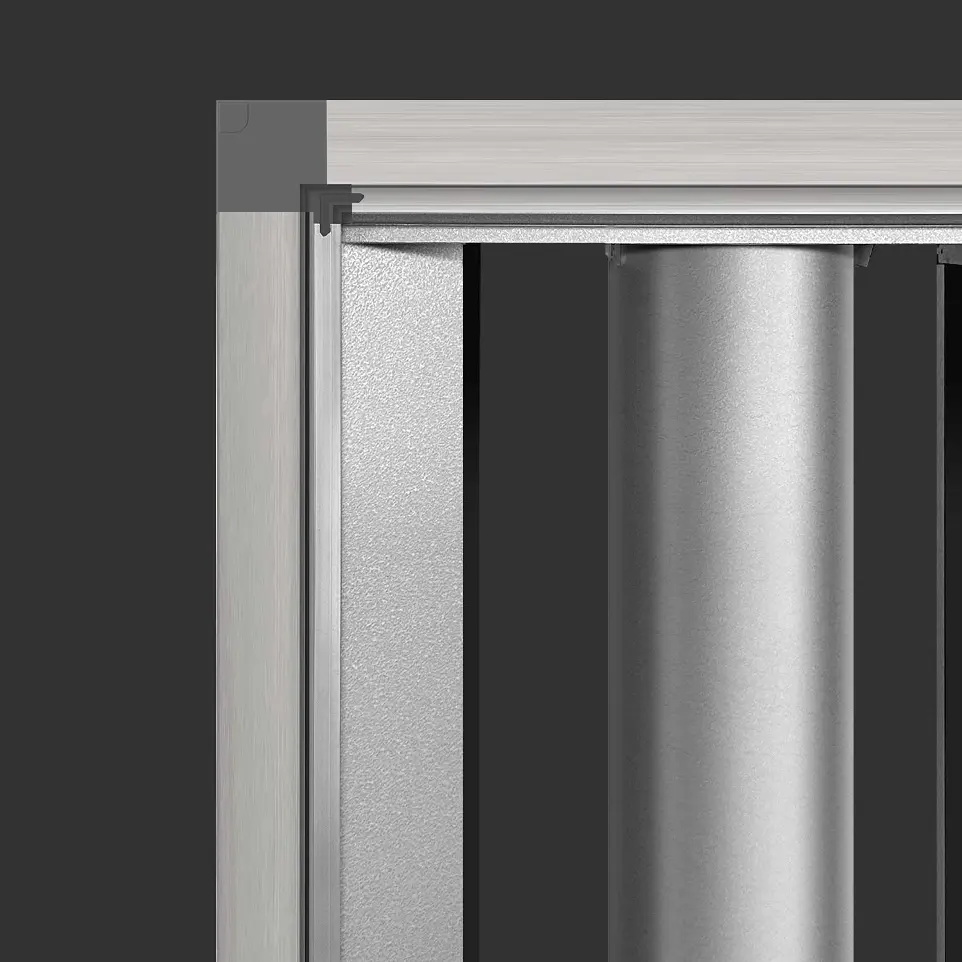

Functional components The modular framework offers high flexibility to freely configure each section to fulfil the requirements in the specific application. Configurations include: Air damper, water- and electric heater, multi-stage air filtration, mixing section, water- or dx cooling and/or heating, sound attenuators, rotary or counterflow heat recovery, run-around coils, EC fans, automatic controller.
Thermal bridge The rigid framework is classified as TB2, resulting in minimal thermal leaks and improved performance in line with EN 1886 standards. Complex profiles provide robustness and resistance to corrosion, ensuring longevity. The high-quality, precise framework ensures safe and convenient access to each section, facilitating maintenance and cleaning.
Thermal transmittance The casing is made from 51 mm panels, resulting in T2 classification according to the EN 1886 standard for thermal transmittance, ensuring energy efficient operation. It features rockwool insulation with a density of 70 kg/m³ for reduced noise levels, placed between corrosion-resistant steel plates, secured by additional thermal bridging plastic profiles.
Airtight stability MultiPlex 2 features a strong, load-bearing and airtight structure that meets the highest rating classes: D1 for deflection and L1 for air leakage. These are essential for maintaining correct pressure, durability, and system efficiency. The unit's strong framework and panel combination minimize air leakage and protect against damage that could lead to malfunction.
Filtration High efficiency filtration separates pollen, fine dust, bacteria, and other particles from the airflow, greatly improving both the longevity of the unit and the quality of the delivered air. We offer a wide range of high-quality filters that feature large surfaces, low pressure drop, and multiple levels of particulate efficiency. The frame and rail design are compliant with Class F9 for filter by-pass leakage, according to EN 1886.
Need Assistance?
For further information please contact our sales engineers
Documentation

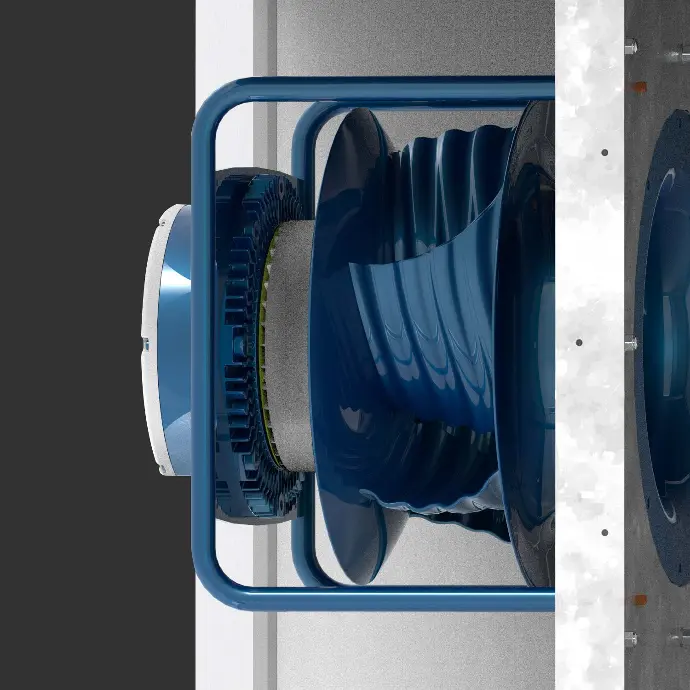

EC plug fans
The units feature direct-driven EC plug fans for both supply and exhaust airflows, offering energy efficient operation with low sound levels. The EC motors include integrated variable speed control enhancing efficiency across all speed ranges and minimizing the use of electricity.

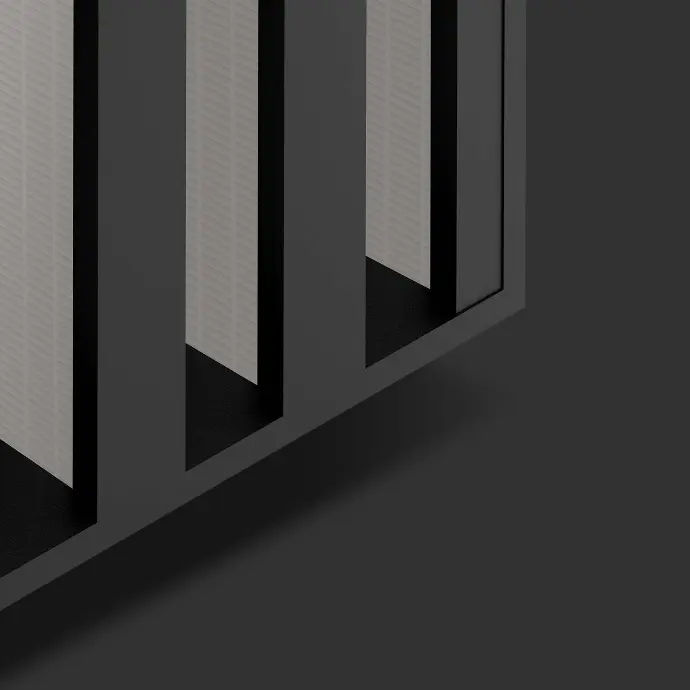

Filters
Available with a wide range of filtration options and a frame design developed for durable operational performance of the unit, ensure high ventilation efficiency. Compact, panel or pocket filters offer fine dust, bacteria and particle filtration ranging from coarse to ePM1 90%*. The frame design adheres to Class F9 for filter by-pass leakage.**
*According to ISO16890 standard.
**According to EN 1886 standard.
