Compact Air Handling Units
AltiPlex R
Compact Air Handling Unit With Rotary Heat Recovery and Integrated Automatic Control
Description
AltiPlex R is a compact indoor air handling unit, with all of the air connections placed on the top of the unit. With AltiPlex R, the installation area can be reduced with up to 70 %, saving valuable square meters. The unit, as standard, is supplied with a highly efficient rotary heat exchanger, EC fans for supply and extract air, F6/F5 filters, and the new generation CA-Plex automatic controller. In addition, a heating coil, water- or DX air cooler/heater can also be placed within the unit.
Main features
Direct driven EC fans
Rotary heat exchanger
Due to its top connection, AltiPlex requires only a small space for installation
Equipped with F6/F5 filters as standard
New generation CA-Plex automatic controller
AltiPlex is delivered in one or in three separate sections, depending on the unit size
Simple installation and fast startup
Energy efficient operation and low running cost
Airflow range
1.200 - 7.200 m³/h (333 - 2.000 l/s)

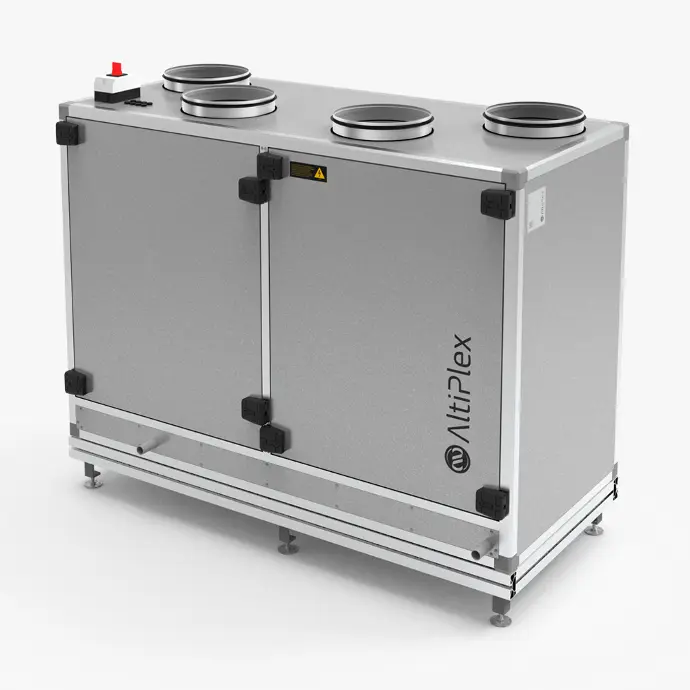

AltiPlex P
Compact air handling unit with counterflow plate heat exchanger
Description
AltiPlex P is a top connected compact air handling unit with a highly efficient counterflow plate heat exchanger, EC fans for supply and extract air, F6/F5 filters and control as standard. In addition, a heating coil, water- or DX air cooler can also be placed within the unit. All other accessories are to be built into the external air ducts.
Material & finish
The Airvent designed framework of Plex air handling units is made of strong, solid aluminum profiles with aluminum corner fittings. The covering panel structure is 40 mm thick, its material is sheet steel with aluzinc coating, equipped with glass wool insulation.
Main features
Nominal airflow range from 1.200 m³/h to 7.200 m³/h
Direct driven supply and extract air EC fans as standard
Equipped with F7/F6 filters as standard
Integrated Airvent CA–Plex control system as standard
Counterflow plate (P) heat exchanger
Small installation space, due to its top connection
AltiPlex 12T to 25T units are delivered in one piece; from 35T to 72T the units are delivered in three pieces
Plug-and-play: easy installation and fast startup
